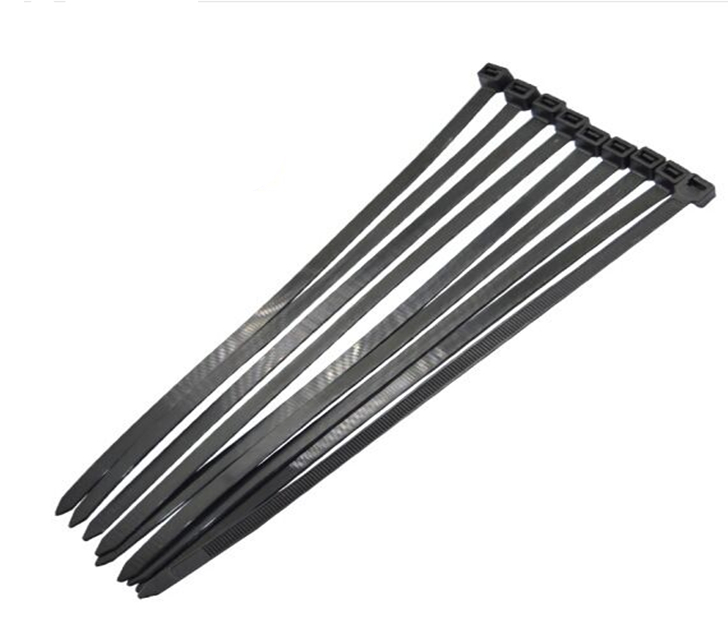

Self locking cable tie

  • Nylon PA66 cable tie
Nylon PA66 cable tie

Nylon PA66 cable tie

  • self locking
  • nylon PA66
  • various sizes
  • wire accessories
  • Product description: Nylon PA66 cable tie
  • INQUIRY

Fire Rating 94V-2 Self-Locking Nylon PA66 Cable Tie


Specification Of Self Locking Nylon Cable Tie:

Product Name: Self-locking Nylon cable tie
Material: Nylon 66, 94V-2 certificated by UL, REACH, ROHS
Color: Natural( or white, standard color), UV-black, other colors are available as requested
Temperature: From -35ºC  to 85ºC
Feature: Heating-resisting, Acid, Erosion Resistant, Good Insulation and not apt to age
Certificates: UL,  ROHS, REACH, UV
Application: Widely used to bundle cable and wire or other things in the industry of electrical&electronic, lighting, hardware, pharmaceutical, chemical, computer etc. It's easy to use.
Package: 100pcs+Polybag + Label or header card+Standard Exporting Box
Delivery time: Pls advise your quantity to get correct answer.
Payment terms: T/T, L/C, Western Union, PayPal, Money Gram


Diagrammatic of Self Locking Nylon Cable Tie:
Fire Rating 94V-2 Self-Locking Nylon PA66 Cable Tie
Data Sheet of Self Locking Nylon Cable Tie :

ITEM .NO. LENGTH WIDTH BUNDLE DIAMETER TENSILE STRENGTH
INCH MM MM MM LBS KGS
TL-2.5X100 4.0" 100 2.5 2-22 18 8
TL-2.5X120 4.7" 120 2-30
TL-2.5X150 6.0" 150 2-35
TL-2.5X200 8.0" 200 2-50
TL-3.6X150 6.0" 150 3.6 3-35 40 18
TL-3.6X180 7.1" 180 3-42
TL-3.6X200 8.0" 200 3-50
TL-3.6X250 10" 250 3-65
TL-3.6X300 12" 300 3-80
TL-3.6X370 14.5" 370 3-102
TL-4.8X200 8.0" 200 4.8 3-50 50
22
TL-4.8X250 10" 250 3-65
TL-4.8X300 12" 300 3-80
TL-4.8X350 14" 350 3-90
TL-4.8X370 14.5" 370 3-102
TL-4.8X400 16" 400 3-105
TL-4.8x450 18" 450 3-130
TL-4.8X500 20" 500 3-150
TL-7.6X200 8" 200 7.6 3-50 120 55
TL-7.6X250 10" 250 4-65
TL-7.6X300 12" 300 4-80
TL-7.6X350 14" 350 4-90
TL-7.6X380 15" 380 4-100
TL-7.6X400 16" 400 4-105
TL-7.6X450 18" 450 4-110
TL-7.6X500 20" 500 4-150
TL-7.6X550 21.6" 550 4-160
TL-7.6X700 28" 700 4-195
TL-9.0X400 16" 400 9 8-105 175 79.4
TL-9.0X450 18" 450 8-118
TL-9.0X500 20 " 500 8-150
TL-9.0X550 21.6" 550 8-160
TL-9.0X600 23.6" 600 8-170
TL-9.0X650 25.6 " 650 8-185
TL-9.0X700 28 " 700 10-195
TL-9.0X750 29.5" 750 10-225
TL-9.0X800 31.5" 800 10-230
TL-9.0X900 35.5" 900 10-265
TL-9.0X1020 40.1" 1020 10-300
TL-9.0X1200 47.2'' 1200 10-340

Usage Of Self Locking Nylon Cable Tie:


Fire Rating 94V-2 Self-Locking Nylon PA66 Cable Tie


Fire Rating 94V-2 Self-Locking Nylon PA66 Cable Tie
